JVLF2030 VACUUM LABROTARY FURNACE

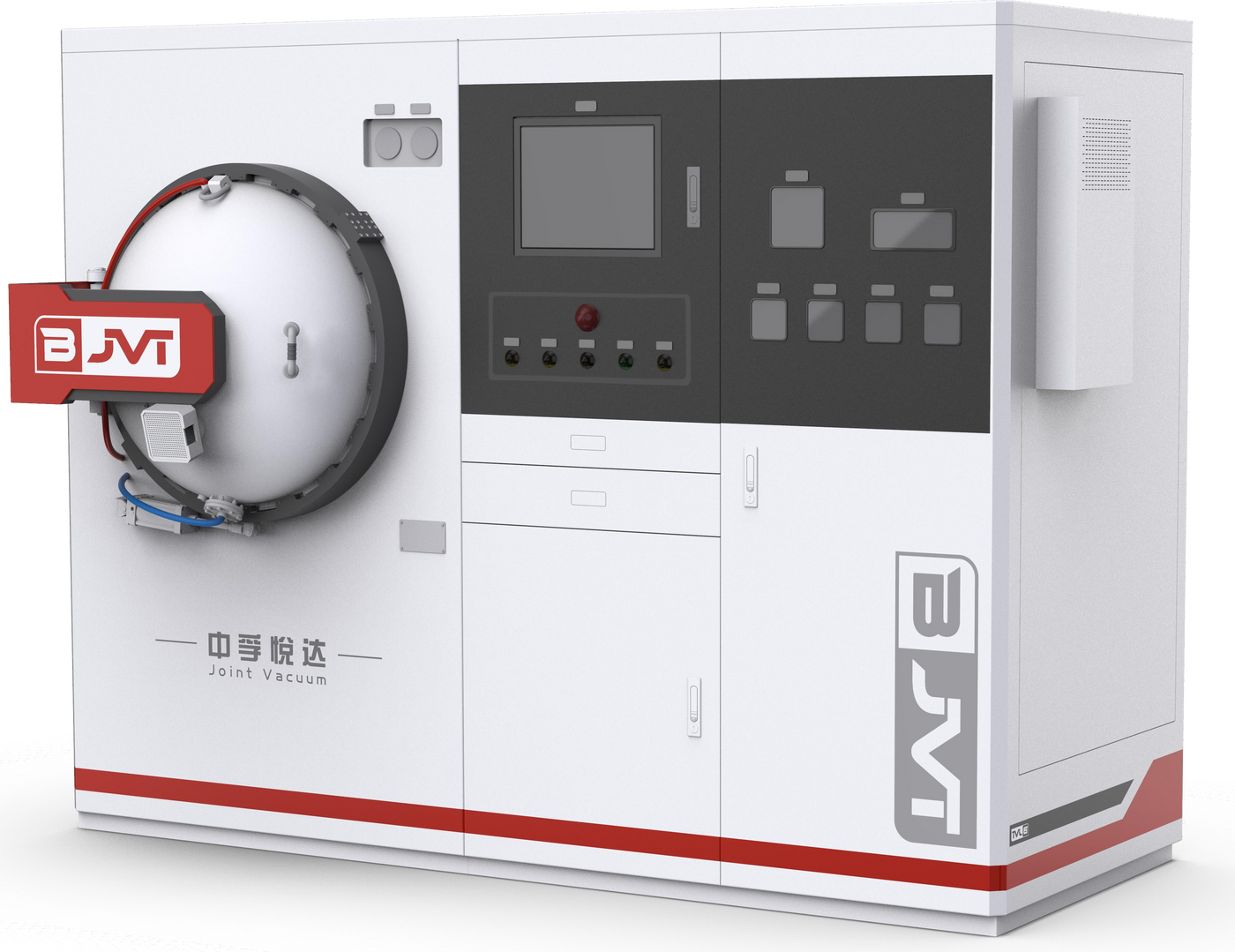

The vacuum laboratory furnace, type JVLF2030 is a cold wall, resistance heated furnace with a horizontal, round hot zone, Heater elements and thermal insulation are made of Molybdenum.

This vacuum furnace can be used for vacuum annealing, vacuum tempering, vacuum gas cooling of 2bar etc. Other processing is still available, like vacuum sintering and vacuum brazing for some specified parts etc.

This vacuum furnace is designed according to the ISO international standard; all the instruments and components use SI standard measurement unit.

Download Manual

Specifications

Hot zone parameters
Effective heating zone size	Φ150×240（H）mm
Max. Loading capacity	20 Kg (Tooling and rack are included)
Temperature parameters
Max. Temperature	1300℃
Operation temperature	550℃~1250℃
Temperature uniformity	≤±5℃, Tested at 550℃, 800℃, 1050℃
Temperature control accuracy	≤±1.0℃
Heating power	30Kw
Heating speed	0~25℃/min（adjustable, without loading）
Vacuum parameters
Ultimate vacuum	≤6×10-4 Pa Testing in the condition of baked-out, degassed, unloading and cold state
Working vacuum	≤6×10-3 Pa
Pressure rising rate	≤0.65Pa/h after bake-out
Range of partial pressure	10Pa to 500Pa
Pumping speed	Less than 30 mins from 105Pa to 6×10-3 Pa
