High compact and precision

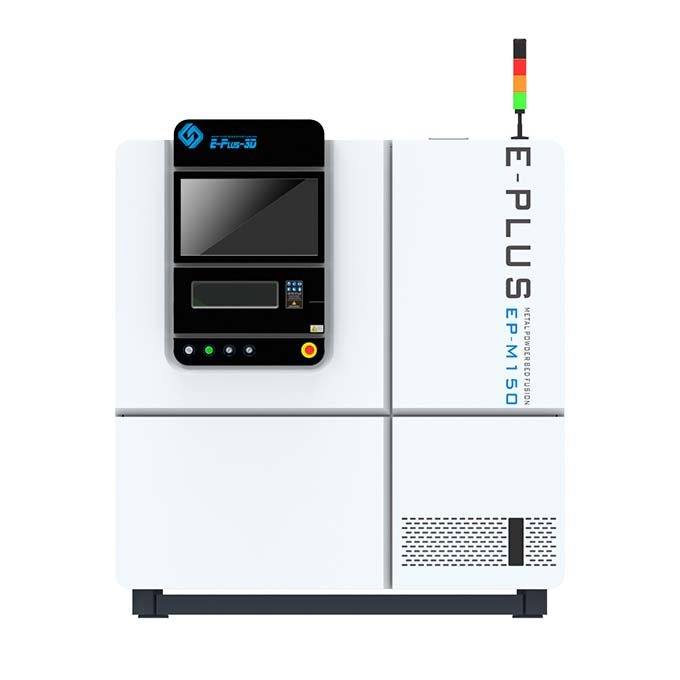

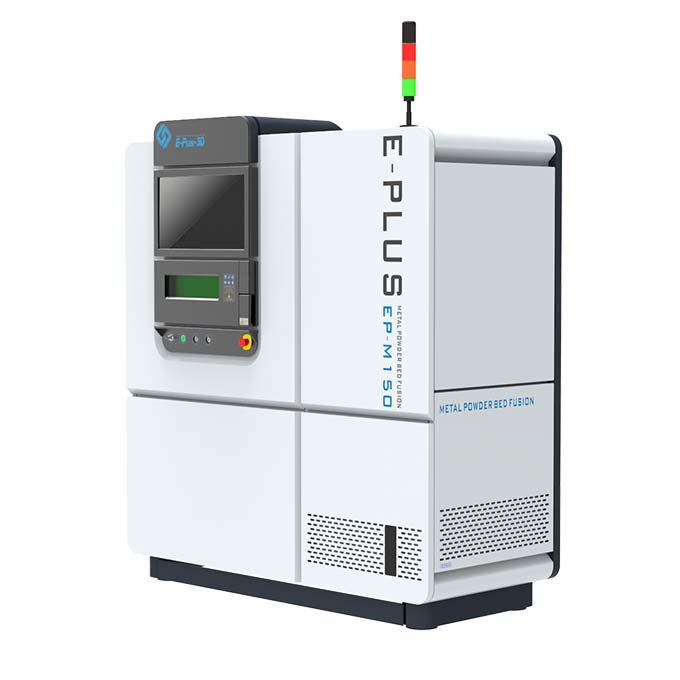

Metal additive manufacturing machine
Utilizing Eplus3D MPBF™ (Metal Powder Bed Fusion) technology, the EP-M150 excels in producing intricate 3D geometric data into advanced metal 3D components, ideal for mass production of dental components, medical implants, and material research centers for exploring different metal powders through its accessible parameter platform.
Machine Specifications
Machine Model: EP-M150
Build Volume (X x Y x Z) (height incl. build plate): Φ150 x 140 mm (Φ5.91 x 5.51 in)
Optical System: Fiber Laser 200 W (single or dual-laser optional)
Spot Size: 40 – 60 μm
Max Scan Speed: 8 m/s
Theoretical Printspeed: Up to 35 cm³/h
Layer Thickness: 20 – 50 μm
Material: Titanium Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, etc.
Power Supply: 220 V, 50 / 60 Hz, 3kW
Gas Supply: Ar / N2
Oxygen Content: ≤ 100 ppm
Dimension (W x D x H): 1750 x 799 x 1828 mm
Weight: 900 kg
Software: EPControl, EPHatch
Input Data Format: STL or other Convertible File
