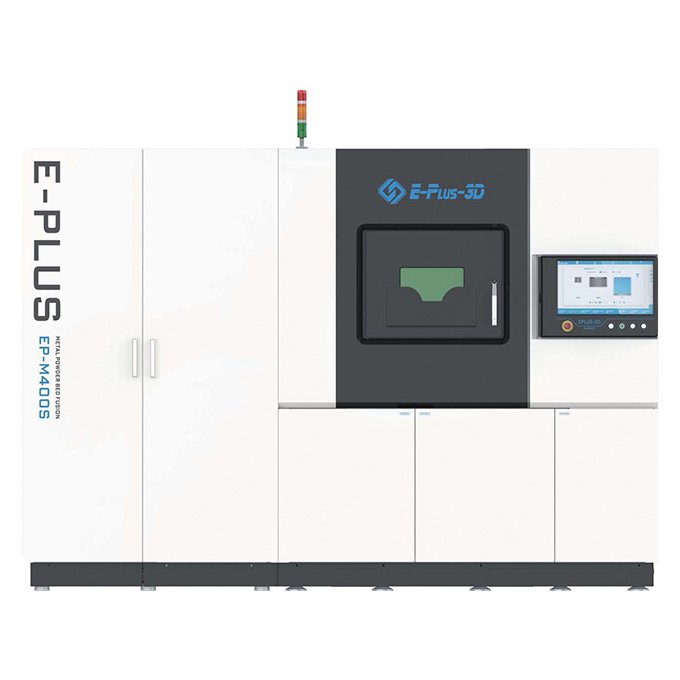

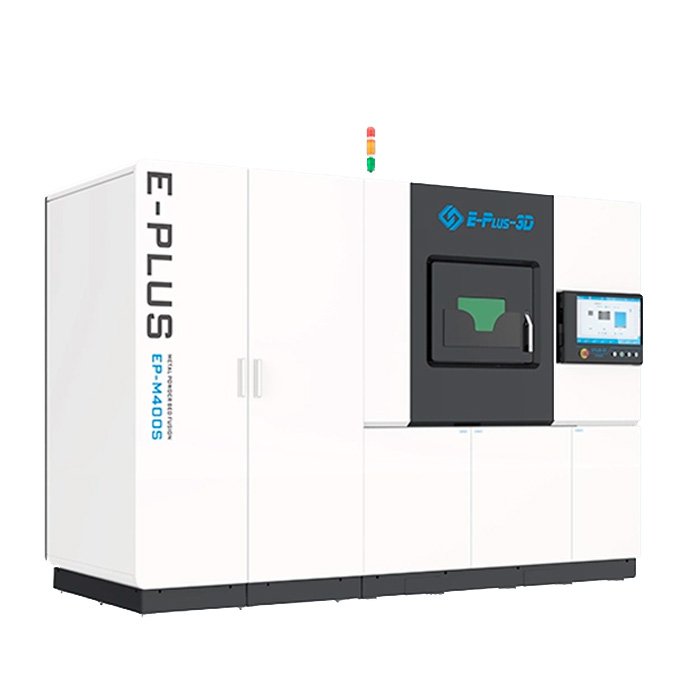

EP-M400S
Build Volume 400 x 400 x 450 mm

Large Size and High Productivity
Metal Powder Bed Fusion Machine

The EP-M400S is offered in four setups: single, dual, triple, and quad laser, providing versatility for printing materials such as titanium alloy, aluminum alloy, nickel-based alloys, maraging steel, stainless steel, cobalt chrome, and more. It is well-suited for the direct fabrication of large-scale, precise, high-performance components in aerospace and various other industries.

Machine Specifications

Machine Model: EP-M400S
Build Volume (X x Y x Z) (height incl. build plate): 400 x 400 x 450 mm (15.75 x 15.75 x 17.72 in)
Optical System: Fiber Laser 1 / 2 / 3 / 4 x 500 W (700 W and 1000 W are optional)
Spot Size: 70 – 120 μm
Max Scan Speed: 8 m/s
Theoretical Printspeed: Up to 190 cm³/h
Layer Thickness: 20 – 120 μm
Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply: 380 V, 50 / 60 Hz, 12.5 〜18 kW
Gas Supply: Ar / N2
Oxygen Content: ≤ 100 ppm
Dimension (W x D x H): 3530 x 1700 x 2800 mm
Weight: 5000 kg
Software: EPControl, EPHatch
Input Data Format: STL or other Convertible File
