Quad Laser Large Size

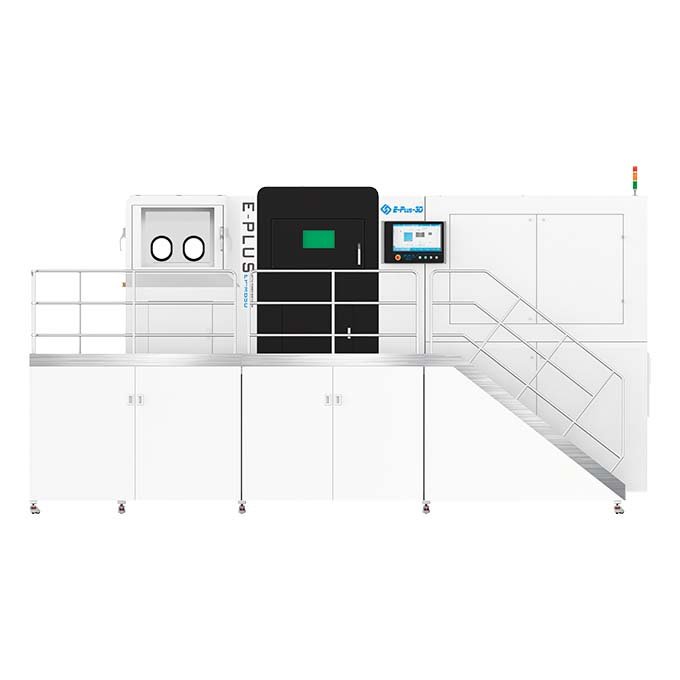

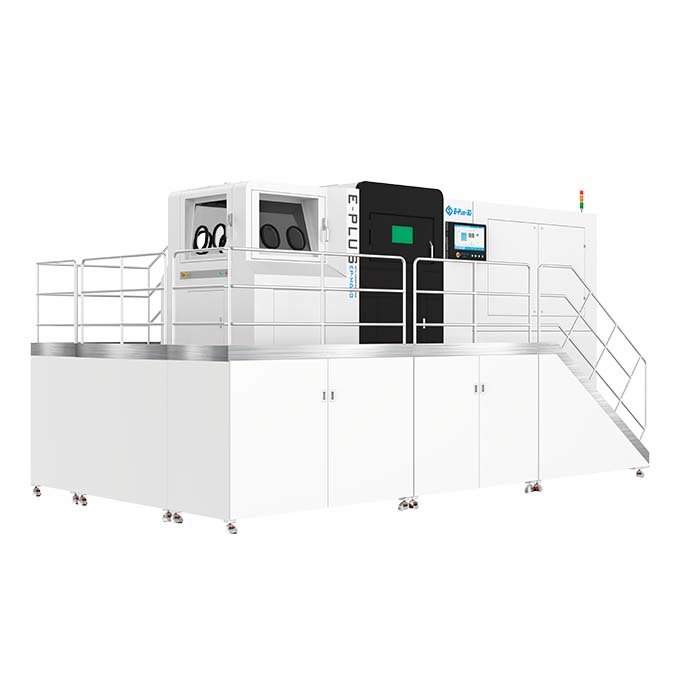

Metal Additive Manufacturing Machine
Utilizing MPBF™ (Metal Powder Bed Fusion) technology, the EP-M650 features a spacious build envelope and options for 4, 6, or 8 laser systems to maximize production efficiency. Advanced area splicing control technology ensures consistent uniformity and stability throughout the printing process.

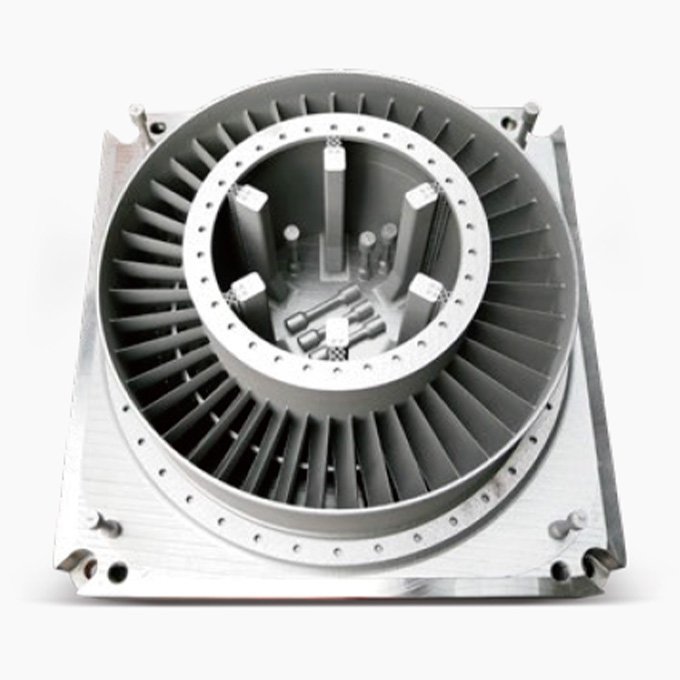

The system supports a wide range of metal powders including titanium, aluminum, nickel alloys, maraging steel, stainless steel, cobalt chrome, and more. It is ideal for direct manufacturing of large-scale, precision, and high-performance components in aerospace, aviation, automotive industries, and beyond.
Machine Specifications
Machine Model: EP-M650
Build Volume (X x Y x Z) (height incl. build plate): 650 x 650 x 800 mm (25.59 x 25.59 x 31.49 in)
Optical System: Fiber Laser 4 / 6 / 8 x 500 W (700 W and 1000 W are optional)
Spot Size: 70 – 120 µm
Max Scan Speed: 9 m/s
Theoretical Printspeed: Up to 190 cm3/h
Layer Thickness: 20 – 120 µm
Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Substrate Heating: Substrate Heating Temperature 200 °C
Power Supply: 380 V, 50 / 60 Hz, 18 ~ 23 kW
Gas Supply: Ar / N₂
Oxygen Content: ≤100 ppm
Dimension (W x D x H): 6800 x 3945 x 3785 mm
Weight: 15000 kg
Software: EPControl, EPHatch
Input Data Format: STL or other Convertible File
