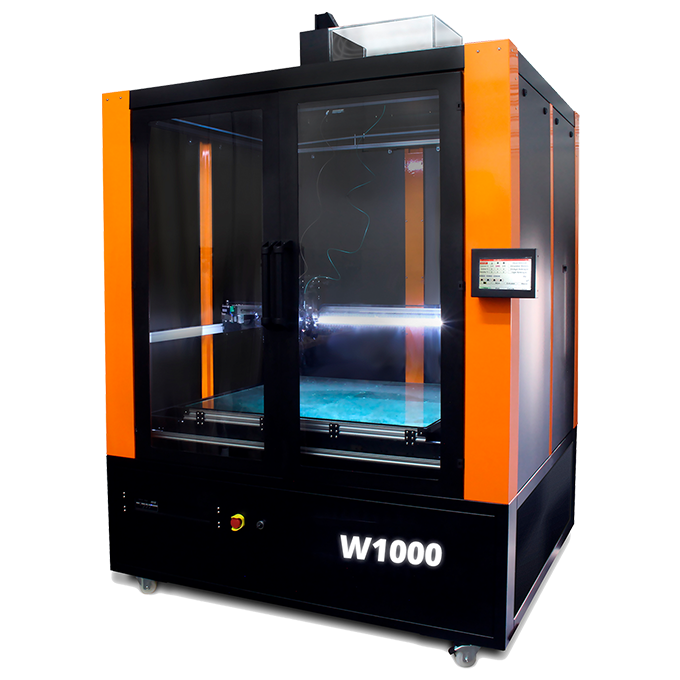

Extra-large build volume easy-to-use industrial-strength 3D printer
Build volume measuring 1000 x 1000 x 1000 mm and offers an open materials platform capable of accommodating two extra-large 5kg spools, ideal for extended printing projects
High Capacity 3D Printer
It has 1000 liters of useful printing volume. Accepts a wide range of materials with an open system: no brand exclusivity.
It is recommended for making large pieces and a single piece. It has weight, energy consumption and is suitable for installation in non-industrial areas.
Machine Specifications
Printing Technology: Fused Filament Fabrication [FFF]
Build Envelope (XYZ): 1000 x 1000 x 1000 mm (39.4 x 39.4 x 39.4 in.)

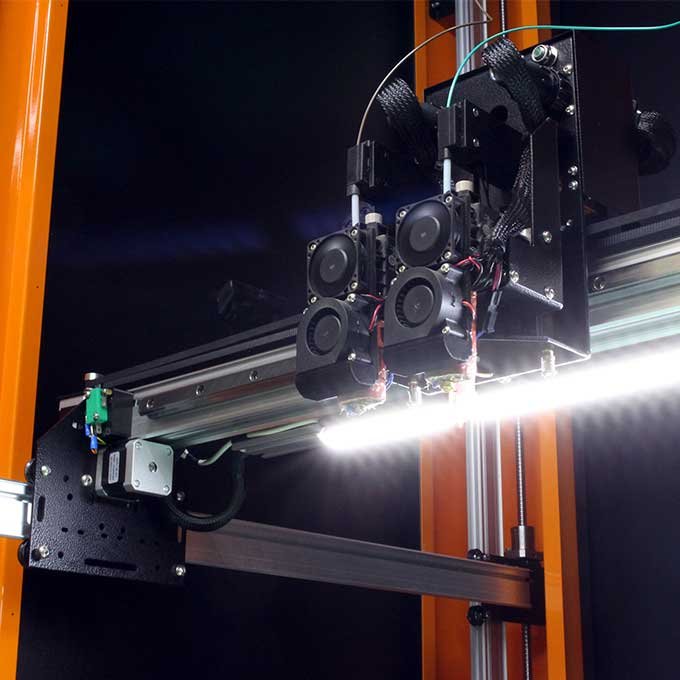

Extruder: Dual Print and Support
Filament Diameter: 1.75mm
Material Storage: Two heated Filament bays: 1 for support, 1 for printing material
Nozzle Diameters: 0.6 mm for modeling and 1.2 mm for support ( 0.4 , 0.9 mm optional)
Power Requirements: 208-220V, single phase, 50/60 Hz, 28 Amps
Slicing Software: Simplify 3D – included / other options available
Operating System: Microsoft Windows 10 (Pro, Enterprise, Education; all 64-bit versions)
Machine size uncrated (w,d,h)/Weight: 2.26 x 2.30 x 2.12 m (99 x 90.5 x 83.5 in.) / 850 kg (1,874 lbs)
Machine size crated (w,d,h)/Weight: 2.40 x 2.36 x 2.26 m (94.5 x 93 x 99 in.)/ 1.110 kg (2,447 lbs)
Achiavable Parts Accuracy: ±.15mm (.0059 in.) or ±.0022 mm/mm (±.0022 in./in.), whichever is greater*
Max. Nozzle Temperature: Max 450 °C
Max. Bed Temperature: Max 120 °C
Bed Leveling: Automatic
Network Communication: 10/100 base T connection. Ethernet Protocol
Operating Environment: 18°–30° C (64°–86° F) / 30%–70% relative humidity
* accuracy is geometry, size, material and ambient dependent
